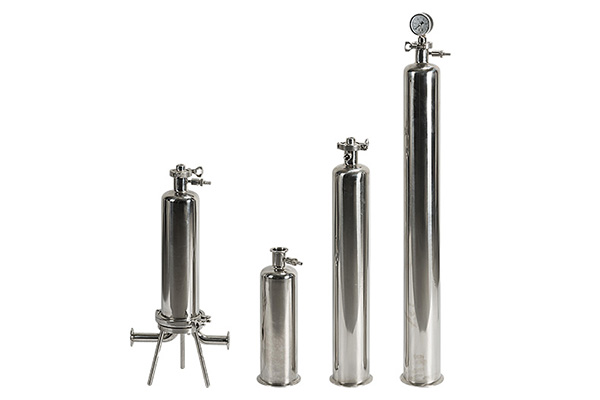

Single Pleated Cartridge Stainless Steel Filter Housing
This sanitary-grade single pleated cartridge housing is polished to Ra 0.3 micron internally and Ra 0.4 micron externally, meeting GMP requirements for pharmaceutical and food-grade applications. It withstands 0.6 MPa design pressure and includes threaded exhaust and drain valves.
- Caudal
- 500 GPM
- Micron Rating
- 5, 10, 25 μm
- Max Temperature
- up to 80°C
| Element Capacity | rn1 pleated filter cartridge | rn
| Design Pressure | rn0.6 MPa | rn
| Internal Wall Polish | rnRa 0.3 micron | rn
| External Wall Polish | rnRa 0.4 micron | rn
| Material | rnSS316L | rn
| Fittings | rnThreaded exhaust valve and drain valve | rn
| Support | rnReinforced adjustable-height feet | rn
| Certificaciones | rnISO 9001; GMP compliant | rn
The internal wall polish of Ra 0.3 micron is achieved through multi-stage mechanical and electro-polishing, eliminating microscopic surface pits where bacteria can colonise and product can accumulate. The fully disassemblable design allows manual inspection and cleaning to GMP standards between product runs. Reinforced adjustable-height stainless steel feet provide stable installation on uneven plant floors without shimming.
