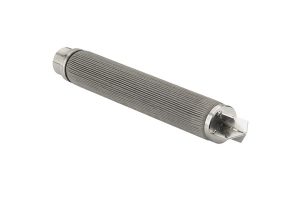

Cartucho filtrante de acero inoxidable PHSC
- Flow Rate:
- 500 GPM
- Micron:
- 5, 10, 25 μm
- Temp:
- up to 80°C

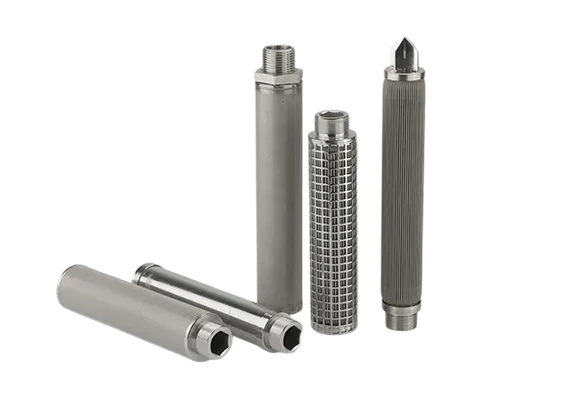

Cartuchos filtrantes de acero inoxidable
When operating conditions rule out disposable media, stainless steel filter cartridges provide a permanent filtration solution. Constructed from sintered or woven stainless steel, they deliver micron-level filtration with exceptional mechanical strength, high temperature tolerance, and long service life.
In-house Lab Testing
ISO 9001 Certified
Global Delivery
Need Help Selecting?
Our engineers can help you choose the right filter for your application
Cartuchos filtrantes de acero inoxidable
5

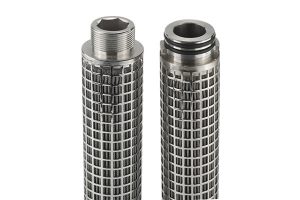

Cartucho filtrante de acero inoxidable PHSF
- Flow Rate:
- 500 GPM
- Micron:
- 5, 10, 25 μm
- Temp:
- up to 80°C

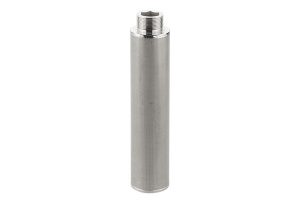

Cartucho filtrante de acero inoxidable PHSW
- Flow Rate:
- 500 GPM
- Micron:
- 5, 10, 25 μm
- Temp:
- up to 80°C

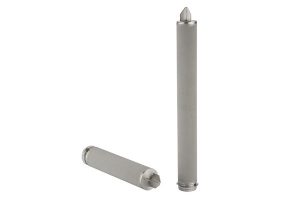

Cartucho filtrante de acero inoxidable PHSP
- Flow Rate:
- 500 GPM
- Micron:
- 5, 10, 25 μm
- Temp:
- up to 80°C

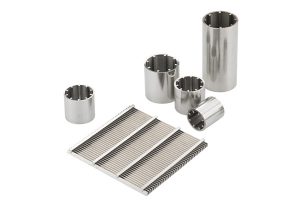

Cartucho filtrante de acero inoxidable PHSV
- Flow Rate:
- 500 GPM
- Micron:
- 5, 10, 25 μm
- Temp:
- up to 80°C
Understanding Stainless Steel Filtration
Stainless steel filtration relies on rigid metallic structures rather than fibrous media to control particle retention. Depending on construction, these cartridges can achieve absolute or nominal ratings from 1 to 200 microns while maintaining structural integrity under extreme pressure and temperature.
They are fully cleanable by backflushing, ultrasonic cleaning, or chemical washing. This makes stainless steel cartridges well suited to harsh environments where disposable filters would fail or require frequent replacement.
Key Benefits
- Cleanable media
- High temperature tolerance
- Extreme durability
- Larga vida útil
Need Help Selecting?
Our engineers can help you choose the right filter for your application
Why Choose Pullner Filter?
Más que un simple proveedor: somos su socio técnico en soluciones de filtración
Laboratory and Testing Facilities
In-house testing capabilities for materials and quality assurance with advanced equipment and certified technicians.
- Particle counting analysis
- Pressure drop testing
Material - compatibility testing
Design and R&D Services
Position as technical partner, not just supplier. Custom solutions for your unique challenges.
- Custom filter design
- System optimization
- Technical consultation
Free Services
Comprehensive free services to support your filtration needs without any hidden costs.
- Free testing for filtration systems
- Free custom filtration design
- Up to 2 free samples
Global Manufacturing
State-of-the-art manufacturing facilities with worldwide delivery capabilities and local support.
- ISO 9001 certified facilities
- Global logistics network
- Local technical support
Resultados reales con los filtros de alto caudal Pullner: Casos prácticos
Vea cómo nuestros cartuchos de alta capacidad ayudan a clientes de todo el mundo a reducir costes, aumentar los caudales y mejorar el rendimiento de la filtración en todos los sectores.
Preguntas frecuentes
A stainless steel filter cartridge is a reusable metal filter used to remove solid particles from liquids or gases. It’s commonly selected for durability, corrosion resistance, and use in higher-temperature or demanding industrial conditions.
Yes. Many buyers use the term stainless steel filter element when referring to the cartridge inside a housing, especially when specifying media type, micron rating, and operating conditions.
Our stainless steel filter cartridges include mesh pleated (PHSC), sintered fiber felt (PHSF), multi-layer sintered mesh (PHSW), powder-sintered (PHSP), and wedge wire (PHSV).
- Mesh (pleated): designed for strength and regeneration by backflushing (application-dependent).
- Sintered felt: larger filtration area and graded pore structure for higher dirt holding capacity.
- Sintered wire cloth (multi-layer): strong construction with uniform/homogeneous pores for stable filtration under pressure.
- Powder-sintered: depth filtration with uniform pore distribution and wide temperature range options.
- Wedge wire: strong, wear-resistant structure with uniform gaps and easy backwash for larger rigid particles.
For a cartridge filter stainless steel selection, match the micron rating to your particle removal target, flow rate, and acceptable pressure drop; micron ranges vary by cartridge type (see the specifications table on this page).
A stainless steel mesh filter cartridge is commonly selected when you need durable surface filtration and the ability to regenerate by backflushing (depending on operating conditions).
A stainless steel pleated filter cartridge is often chosen when you want more filtration area in a compact size for longer runs between cleanings.
A stainless steel sintered filter cartridge is typically chosen for demanding service where strength, stable pore structure, and cleanability are important (type-dependent).
