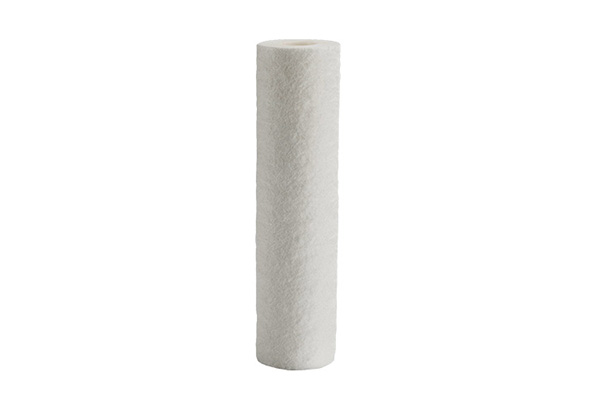

Orange-peel Melt Blown Filter Cartridge
The orange-peel melt blown cartridge uses a textured dimpled outer surface for enhanced mechanical strength and pressure resistance. Its dimpled profile provides additional structural rigidity under elevated differential pressure, making it well suited for high-viscosity and high-pressure applications.
- Flow Rate
- 500 GPM
- Micron Rating
- 5, 10, 25 μm
- Max Temperature
- up to 80°C
| Media | rn100% Polypropylene (PP) | rn
| Surface Type | rnOrange-peel texture | rn
| Outer Diameter | rn63mm | rn
| Inner Diameter | rn30mm | rn
| Lengths Available | rn10 / 20 / 30 / 40 inches | rn
| Filtration Ratings | rn1, 3, 5, 10, 20, 30, 60 micron | rn
| Max Operating Temperature | rn80u00b0C | rn
| Max Differential Pressure | rn0.4 MPa at 21u00b0C | rn
| Certifications | rnFDA compliant, ISO 9001 | rn
