High Temperature Water Filter
Premium High Temperature Water Filters From China
As a trusted industrial filter manufacturer, Pullner specializes in high temperature water filter systems engineered for extreme conditions up to 150°C. Our high temperature water filters feature premium FRP membrane housing and advanced filtration technology for clients in the UAE, Malaysia, Turkey, and over 50 countries worldwide. Our fiberglass reinforced plastic housing serves seawater desalination, municipal water treatment, electronics manufacturing, food and beverage production, and chemical processing industries with superior corrosion resistance and cost-effective performance.
Apply Our Best Quotation
Pullner High Temperature Water Filter
Pullner Filter is a leading high temperature water filter manufacturer in China, specializing in advanced filtration systems rated up to 150°C for power generation and industrial applications. Our high temperature water filters combine FRP membrane housing with exceptional corrosion resistance and thermal stability, making them the preferred choice for condensate polishing, seawater desalination, and critical water purification projects in extreme temperature environments worldwide.
As an experienced high temperature water filter supplier, we offer modular skid-mounted systems engineered to withstand temperatures up to 150°C while reducing equipment costs by 50% compared to stainless steel alternatives. Each high temperature water filter unit delivers superior performance in harsh thermal conditions with 10-50m³/day filtration capacity and options for unlimited expansion through our flexible modular configurations.

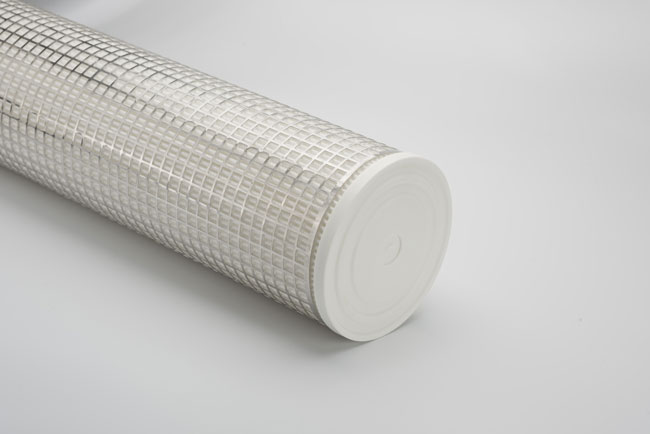

High Temperature Water Filter Element
- Thermal Resistance Up To 150°C For Extreme Conditions
- Backflushable Pleated Design For Extended Service Life
- Iron Removal In Condensate With Or Without Resin Pre-Coat
- Multiple Configurations: PHFZ-I, PHFZ-II, PHFZ-III
- Polypropylene Construction For Superior Corrosion Resistance
- 70″ Length With 1-20 Micron Filtration Options
- Designed For Power Generation Condensate Polishing
- Reduces Downtime And Operating Costs
High Temperature Resistant Backwash Filter Element
High temperature resistant backwash filter element is a backflushable pleated filter designed for iron removal in condensate with or without resin pre-coat. These filters are commonly used in power plant condensate systems to remove dissolved and suspended contaminants.
Designed with integral cage construction and available in multiple configurations (7 parts, 40″+30″, 20″+20″+20″+10″), it has become the most popular design for condensate polishing systems in power plants. The backwashable design extends service life while maintaining high purity levels.
High temperature resistant backwash filter elements are widely used in power plant condensate systems, condensate polishing, mixed circulating condensate, electroplating solution filtration, and supercritical boilers. They effectively remove iron, rust, suspended solids, colloids, chlorides, and silica to protect boilers, steam generators, reactors, and turbines from corrosion.
High Temperature Resistant Filter Element
High temperature resistant filter element is a pleated filter made of Polyester (PET) material designed for precision filtration of benzene, toluene, and liquids containing aromatic hydrocarbon solvents.
The Polyester material can withstand 120°C high temperature and 4 bar working pressure difference, it has become the most popular design for high temperature filtration applications. Easy installation and reliable performance ensure long-term operation.
High temperature resistant filter elements are widely used in biopharmaceuticals, food & beverage, microelectronics, fine chemicals, and water treatment. They are suitable for LCD panels, semiconductor chips, high-purity chemicals, APIs, and condensate filtration systems.
High Temperature Resistant Large Flux Filter Element
High temperature resistant large flux filter element adopts 6″ large diameter structure with single open end and no center core. The outer cage is made of 304 stainless steel with filter material and support layer made of high temperature resistant materials.
The filter element can work long-term under 120°C conditions with high flow rate of 30m³/hour, it has become the most popular design for power plant condensate water filtration. Large diameter and filtration area reduce the number of filter elements and housing dimensions required.
High temperature resistant large flux filter elements are commonly used in:
Power generation boiler condensate
Nuclear and fossil power plants
Cogeneration systems
Gas turbines
These filters efficiently remove iron, suspended solids, and colloids from condensate, protecting boilers and steam turbines from corrosion and damage.
For reliable and efficient filtration, our stainless steel cartridge filter housings provide the perfect complement to these high-performance filter elements, ensuring secure installation, long service life, and optimal filtration in extreme conditions.
High Temperature Water Filter Specifications
| Category | Details |
|---|---|
| Product Type | High Temperature Water Filter Element (liquid filtration) |
| Flow Capacity | 10-50 m³/day (flexible modular configurations for scalable expansion) |
| Outer Diameter (OD) | 6″ (152 mm) |
| Inner Diameter (ID) | Customizable (typically 2″ – 3″) |
| Lengths Available | 40″ (1016 mm), 70″ (1778 mm), customizable lengths available |
| Filtration Ratings | 1 µm, 5 µm, 10 µm, 20 µm (custom ratings available) |
| Efficiency | High dirt holding capacity, ideal for condensate polishing, removes iron, suspended solids, and colloids |
| Filtration Area | Varies based on length and diameter; pleated design increases surface area for enhanced dirt-holding capacity |
| Design | Pleated design for high dirt-holding capacity, backflushable for extended service life |
| Filter Media Options | Polyester (PET), Polypropylene (PP) |
| Core Material | Polypropylene (PP), FRP (Fiberglass Reinforced Plastic) for corrosion resistance |
| End Caps | Thermal welded PP, FRP, or Stainless Steel |
| Seal / Gasket Materials | Silicone, EPDM, Viton, BUNA-N |
| Operating Temperature | Up to 150°C (for extreme conditions, depending on material choice) |
| Max Differential Pressure | 4 bar |
| Recommended Change-out ΔP | 2 bar (depending on application) |
| Service Life | Extended service life due to backflushable design and high dirt holding capacity |
| Advantages | – High mechanical strength |
| – Corrosion resistant (ideal for seawater desalination and power plant condensate polishing) | |
| – Large filtration surface area | |
| – Reduces maintenance costs and downtime | |
| Applications | Power plant condensate polishing, seawater desalination, chemical processing, electronics manufacturing, food & beverage production |
| Replacements For | Compatible with major brands (e.g., Pall, 3M CUNO) |
| Certifications | ISO9001 Quality Management; In-house testing labs |
| Production Process | Material selection → Winding → Core assembly → End cap welding → Final trimming |
| Customization | Custom diameters, lengths, micron ratings, and configurations available |
Pullner Is Your Top High Temperature Water Filter Manufacturer
Why Pullner High Temperature Water Filter
Strong R&D Ability
Professional R&D team with rich experience, provide innovative design and products improve.
Best Price
Pullner provide you high quality and cost-effectiveFRP housing. Saving filtration cost for customers.
Advanced Production and Test Facilities
More than 10 production lines and 2 test laboratories, high production capacity.
Related Products With High Temperature Water Filter
FAQ about High Temperature Water Filter
What is a High Temperature Water Filter Element?
A High Temperature Water Filter Element is designed for extreme conditions, offering thermal resistance up to 150°C. It’s primarily used in industries such as power generation, desalination, and chemical processing for high-performance water filtration.
What are the benefits of using a high-temperature water filter?
Our high-temperature filters are built with corrosion-resistant polypropylene construction and offer long service life due to their backflushable pleated design. This reduces downtime and operating costs. These filters are especially useful in power plants to remove iron and other contaminants from condensate water, ensuring that condensates meet boiler feed water standards.
How does the High Temperature Water Filter Element work?
The filter removes iron, suspended solids, colloids, and other pollutants from condensate water in power generation systems. Its pleated type design, thermal melting welding, and multiple backflush cycles improve efficiency and longevity.
What are the applications of this filter element?
Our High Temperature Water Filter Element is used in power plant condensate systems, condensate polishing, mixed circulating condensate, electroplating solution filtration, and high flux condensate. It’s also used in supercritical boilers and other critical applications, especially for iron removal.
What filtration options are available?
The filter element is available in lengths up to 70″ (1778mm) and with micron ratings from 1 to 20 microns. Different precisions are used based on whether the element is used as a start-up or operating filter in power generation systems.
Can the filter handle extreme temperatures and pressure?
Yes, the filter can withstand temperatures up to 150°C and operates efficiently under significant pressure differentials. It’s built to perform in the demanding conditions found in power generation and other high-temperature environments.
How does the backflushable design benefit performance?
The pleated, backflushable design extends the filter’s service life by allowing periodic cleaning, which helps maintain high filtration efficiency and reduces the need for replacement, even under long-term use.
How does this filter contribute to environmental protection?
Our filter plays a key role in helping power plants achieve zero discharge of pollutants. By filtering out harmful substances from condensate water, it ensures that the filtered water meets the boiler feed water standard, supporting water recycling and reducing overall water usage.
What industries use this filter element?
This filter is especially critical in the power generation industry but is also used in electroplating, chemical processing, and water treatment applications, where high-temperature water filtration is required.
How does Pullner’s filter element improve equipment reliability?
By removing contaminants like iron and solids from condensate water, the filter protects boilers and steam turbines from corrosion, which helps improve equipment reliability and maximize power output while reducing downtime and operating costs.
We fitted the high temperature water filter element from Pullner at our Dubai thermal water treatment facility. The element has performed exceptionally in high‐temperature condensate lines up to 140 °C, and the backwash design has extended service life noticeably. Highly recommended for demanding industrial applications in the UAE.
Published on: 2025-10-12
Location: Dubai, UAE
In our Kuala Lumpur plant we installed the high temperature resistant large flux filter element and observed a significant drop in downtime and maintenance costs. The build quality and thermal resilience (rated up to 150 °C) provide great confidence for our high‐flow water systems. Service from Pullner has also been very responsive.
Published on: 2025-09-30
Location: Kuala Lumpur, Malaysia
